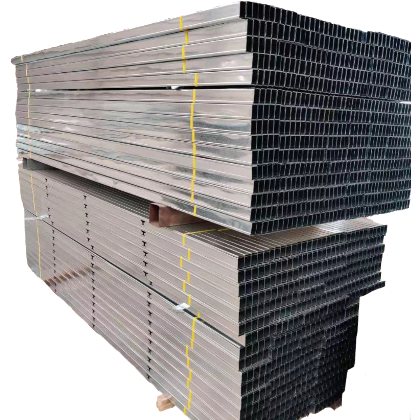

    Vertical Back Rib

    产品特点

    1. High strength of material, strong bearing capacity.
    2. Precise size, guarantee the flatness and verticality of the building structure.
    3. High reuse rate, turnover times up to 200 – 300 times.

    获取报价

    Parameters

    Material Specification Weight
    Q235 / 22kg

    Application

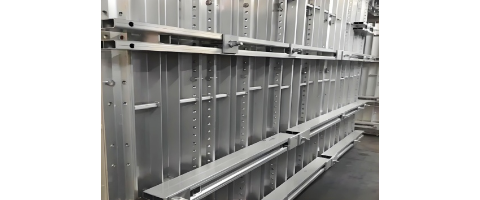

    1. Vertical Back Rib is used for stabilizing the template, preventing deformation of the mold and ensuring the quality of the wall.
    2. Vertical Back Rib can be flexibly combined to meet the special structural template reinforcement such as arc and anisotropy.

    • Vertical Back Rib
    • Vertical Back Rib

    Customization Options

    Vertical Back Rib specifications can be adjusted according to application scenarios and usage.

    资料下载

    • 常见问题

      问

      How to determine if metal accessories are suitable for my aluminum mold project?

      We can provide aluminum mold design drawings to suppliers and match screw specifications through load calculations; On site trial assembly checks the tightness of the pins and the sealing of the template joints to ensure seamless compatibility between the accessories and the existing aluminum mold system.

      问

      What should I pay attention to when using accessories in hot weather?

      Avoid installation during the high temperature period at noon to prevent installation errors caused by thermal expansion and contraction of accessories; Properly reserve expansion gaps for screws and nuts, and promptly clean up water vapor condensed due to temperature differences for rust prevention after construction.

      问

      How to maintain metal accessories in daily life?

      Clean up surface impurities in a timely manner, apply rust proof oil to easily rusted parts, store them by category, and regularly check for wear and tear.

      问

      What are the situations where accessories need to be replaced?

      When vertical back rib there is fracture, severe deformation, thread wear, corrosion affecting strength, or cracking of the lifting ring weld, it must be replaced.

      问

      How to extend the service life of accessories?

      Standardize construction, avoid rough operations, maintain regularly, use according to the designed load, and prevent overloading.

      问

      How to prevent loosening during concrete pouring when installing accessories?

      Use a torque wrench to tighten the nut during installation, and add double nuts to key areas to prevent loosening; The dowel pin must be knocked to the bottom and checked for tightness, and reinforced with a second re inspection before pouring.

      问

      Can metal accessories continue to be used even if they have slight deformation?

      Slight deformation of accessories may cause uneven stress on the formwork, leading to local expansion or leakage of grout. It is recommended to replace it immediately to avoid losing too much due to minor issues; Timely return deformed parts to the factory for repair, reducing overall wear and tear costs.

      问

      Can aluminum mold metal accessories support customized services?

      We support personalized customization for special engineering requirements such as ultra thick walls and irregular structures. But please communicate the requirements in advance to ensure timely delivery without affecting the project schedule.
